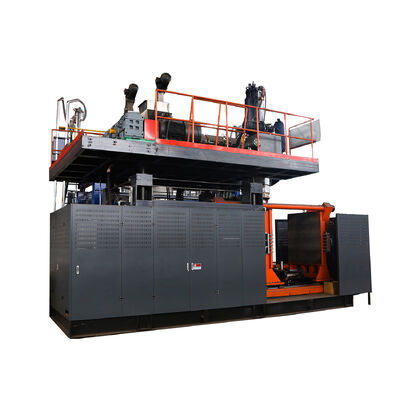

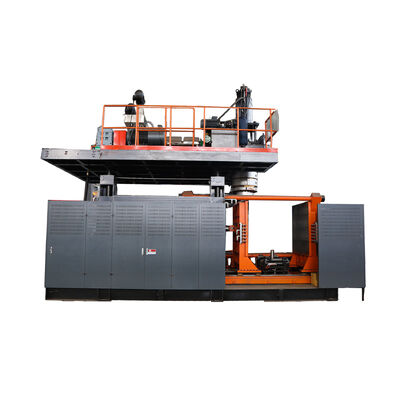

250L Capacity Double-Ring Drum Blow Molding Machine with 30:1 L/D Ratio and Energy-Saving Operation
| Tempat asal | Cina |
|---|---|
| Nama merek | HUAYU |
| Sertifikasi | ISO9001 CE |
| Nomor model | HYBM-250L-1 |
| Kuantitas min Order | 1set |
| Harga | 260000 USD |
| Kemasan rincian | dibongkar ke banyak bagian untuk transportasi kontainer |
| Waktu pengiriman | 4 bulan |
| Syarat-syarat pembayaran | T/T,L/C |
| Menyediakan kemampuan | 1Set 120 hari |
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Diameter Sekrup | 150 MM | L/D | 30: 1 |
|---|---|---|---|
| Bahan sekrup | 38CrMoAlA, Nitridasi | Keluaran | 30 buah/jam |
| Pasokan Udara | 0,8×6（MPa × Meter kubik per menit） | kekuatan total | 324.5KW |
| Konsumsi energi rata-rata (AEC) | Sekitar 180kw per jam | ||
| Menyoroti | 250L Capacity Drum Blow Molding Machine,30:1 L/D Ratio Blow Molding Apparatus,Energy-Saving Operation Double-Ring Drum Blow Molder |
||
Deskripsi Produk
250L 1-Layer Double-Ring Drum Blow Molding Machine
Key Advantages
- High Production Efficiency: Fast cycle times and continuous molding capability deliver 50+ 250L double-ring drums per hour, significantly boosting production output for large-scale manufacturing.
- Precision Molding Performance: Advanced servo control system and precise die head design ensure uniform wall thickness and consistent double-ring structural dimensions, meeting strict industrial standards.
- Energy-Saving Operation: Energy-efficient motor and heat recovery technology reduce power consumption by 15-20% compared to traditional machines, cutting long-term operational costs.
- User-Friendly Operation: Intuitive touch screen HMI with pre-set molding parameters minimizes training time and simplifies daily production adjustments.
- Durable Equipment Build: High-strength steel frame and wear-resistant components provide a service life of over 10 years with minimal maintenance.
- Versatile Compatibility: Optimized for 250L 1-layer double-ring drums but adjustable for different plastic materials (HDPE/PP) and similar-sized barrel products.
- Stable Double-Ring Forming: Dedicated mold and air pressure control unit ensure rings have strong load-bearing capacity without deformation, meeting stacking and transportation requirements.
- Low Material Waste: Precision material feeding system and optimized parison control reduce plastic scrap rate to less than 3%, lowering raw material costs.
Energy Configuration Specifications
| Component | Specification |
|---|---|
| Extruder Driving Power | 160kw Siemens Independent Air Cooler |
| Hydraulic Main System Motor Power | 35.6KW Huichuan Servo Motor |
| Wall Thickness Control Motor Power | 7.5 KW |
| Heating Power of Extrusion System | 7 pcs * 7KW/pc |
| Power of Die Heating | 7 pcs * 6KW/pc |
| Air Supply | 0.8*6 (MPa * Cubic meter per minute) |
| Cooling Water Consumption | 0.3*20°*30 (MPa * degree * Cubic meter per hour) |
| Total Power | 324.5KW |
| Average Energy Consumption (AEC) | Approximately 180kw per hour |
This industrial blow molding machine is engineered for high-volume production of 250L double-ring drums, combining precision engineering with energy-efficient operation for optimal manufacturing performance.
