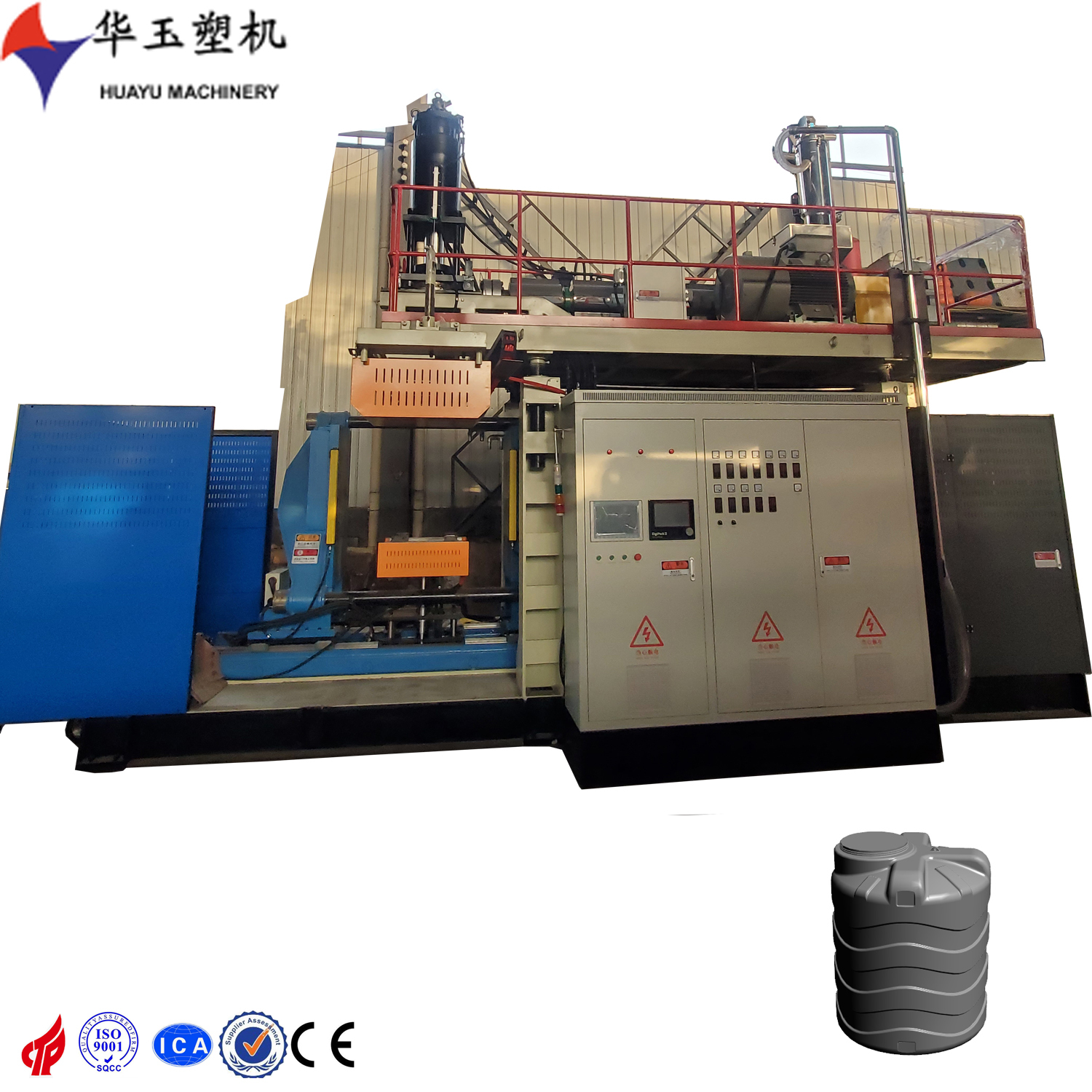

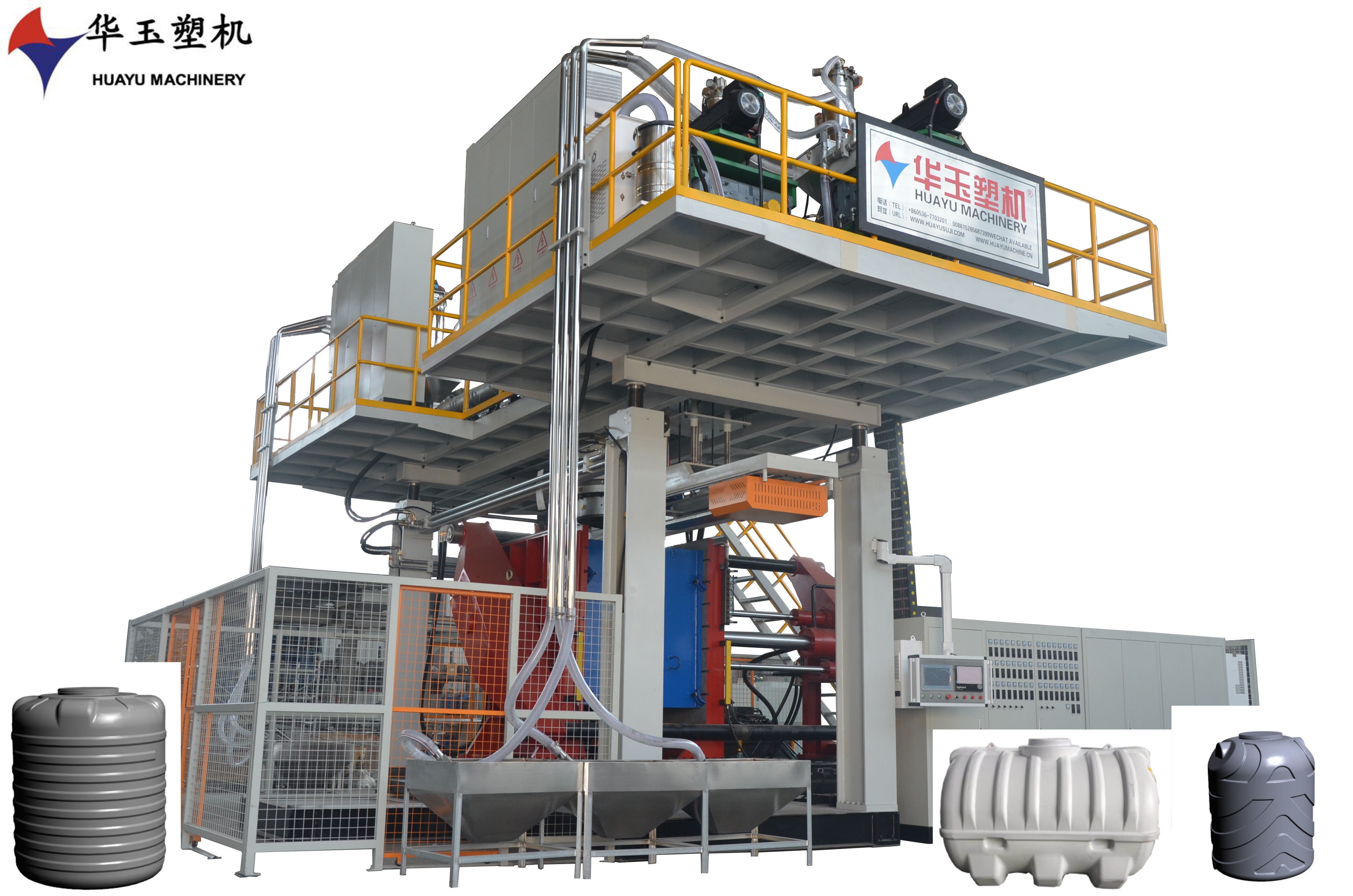

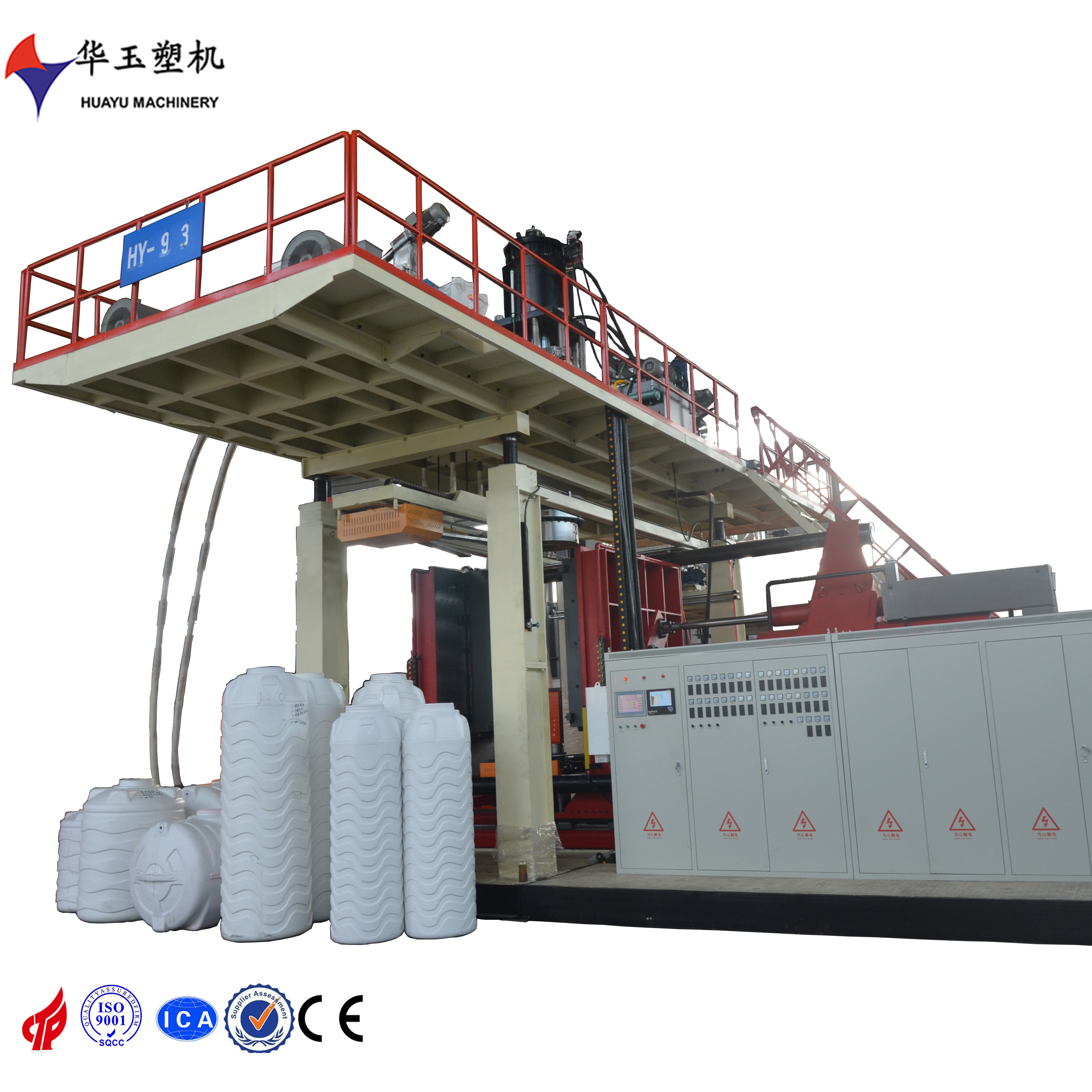

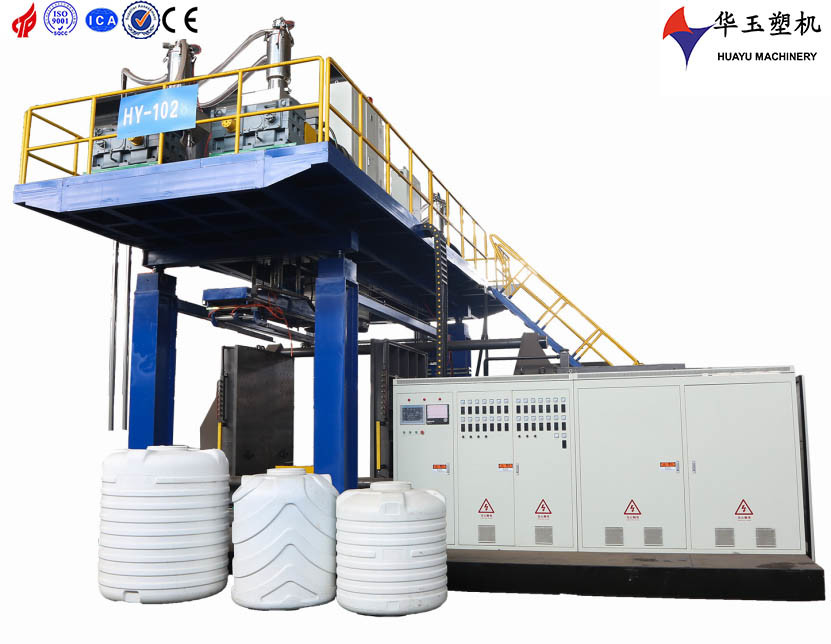

1000L 7-Layer Water Tank Blow Moulding Machine - High Efficiency Blow Molding Equipment
| Tempat asal | Cina |
|---|---|
| Nama merek | HUAYU |
| Sertifikasi | ISO9001 CE |
| Nomor model | HYBM 1000L -7 lapisan |
| Kuantitas min Order | 1 set |
| Harga | 280000 USD |
| Kemasan rincian | dibongkar ke banyak bagian untuk transportasi kontainer |
| Waktu pengiriman | 4 bulan |
| Syarat-syarat pembayaran | T/T,L/C |
| Menyediakan kemampuan | 1Set 120 hari |
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Voltase | Tertunda | kekuatan total | 585kw |
|---|---|---|---|
| Daya rata -rata | 385kW | Dimensi mesin (P*L*T) | 8*9*6.5 |
| Produktivitas | 16-25 pcs/jam | Diameter Sekrup | 90mm*7 |
| Rasio L/D Sekrup | 28 ： 1 | Kapasitas Akumulator | 50KG |
| Ukuran Cetakan | 1400*1500mm(L*T) | Tekanan udara maksimum | 0,8Mpa |
| Konsumsi Udara | 1.5m3/menit | ||
| Menyoroti | 7-Layer Structure Water Tank Blow Moulding Machine,1000L Capacity Blow Molding Equipment,High Efficiency Plastic Water Tank Making Machine |
||
Deskripsi Produk
Top-Tier 1000L 7-Layer Water Container Blow Molding Equipment
Advanced blow molding machine engineered for high-volume production of durable 7-layer water containers with superior performance characteristics.
Key Advantages
- Maximum Strength & Durability: 7-layer structure creates impact-resistant tanks built for long-term performance
- Superior Water Quality: Specialized barrier layer prevents oxygen ingress, reducing algae growth and maintaining water freshness
- Long-Lasting Outdoor Performance: UV-protected outer layer prevents fading, cracking, and degradation from sunlight exposure
- Significant Material Cost Savings: Strategic material placement allows use of premium resins only where needed, with cost-effective or recycled materials in core layers
- High Efficiency & Low Unit Cost: Optimized for fast cycle times and high-volume production, reducing per-unit manufacturing costs
Hydraulic System Specifications
| Main Oil Tank Capacity | 890L |
| Main Oil Pump | Gear Pump 125CC |
| Main Oil Pump Motor | 37kW |
| Servo Oil Tank Capacity | 200L |
| Servo Oil Pump Model | Plunger Pump 22 |
| Servo Oil Pump Motor | 7.5kW |
Electronic Control System
| Main Operation Panel | 12" Touch Screen |
| Control System | PLC |
| Thickness Control Points | 200 Points |
| Temperature Control | PLC Module |
