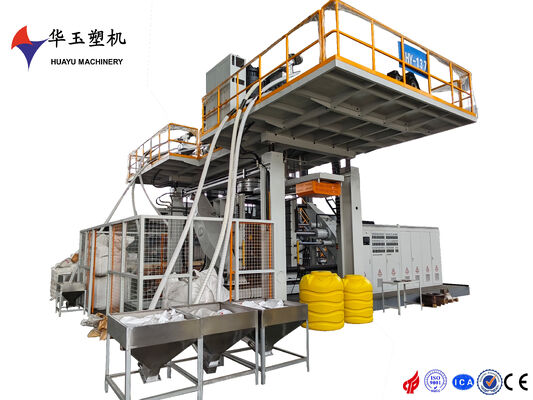

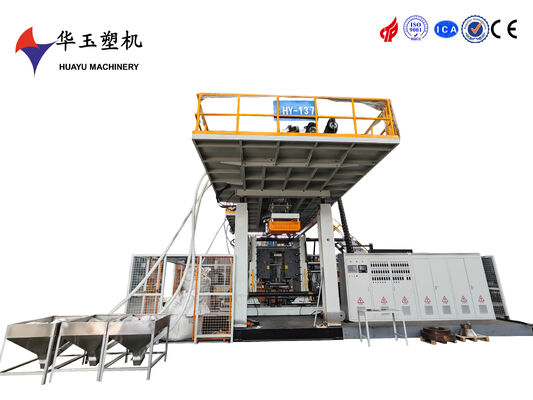

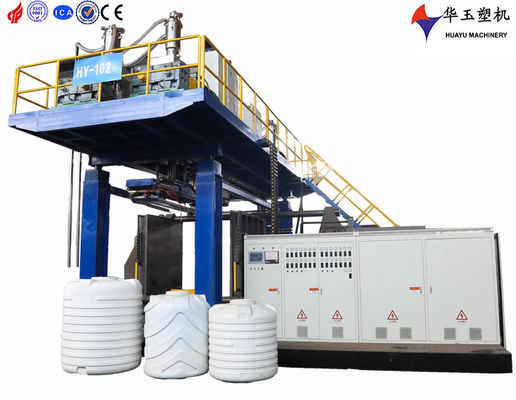

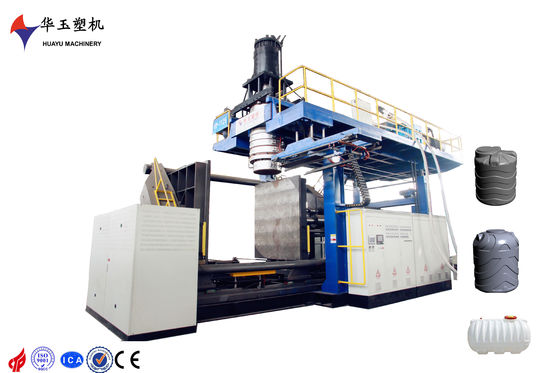

2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production

  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
  • 2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
Tempat asal Cina
Nama merek HUAYU
Sertifikasi ISO9001 CE
Nomor model HYBM-8.2200L -6lapisan
Kuantitas min Order 1 set
Harga 280000 USD
Kemasan rincian dibongkar ke banyak bagian untuk transportasi kontainer
Waktu pengiriman 4 bulan
Syarat-syarat pembayaran L/C,T/T
Menyediakan kemampuan 1Set 120 hari

Hubungi saya untuk sampel gratis dan kupon.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.

x
Detail produk
Voltase Tertunda kekuatan total 550kw
Daya rata -rata 320kw Dimensi mesin (P*L*T) 8,5*9,5*7
Produktivitas 10-24PCS/H. Diameter Sekrup 90mm
Rasio L/D Sekrup 28 Kapasitas Akumulator 60kg
Ukuran Cetakan 1600*2000mm (w*h) Tekanan udara maksimum 0,8Mpa
Konsumsi Udara 2,3m3/mnt
Menyoroti

6-layer structure Water Bucket Blow Molding System

,

2200L capacity Water Tank Blow Moulding Machine

,

High-speed continuous production Blow Molding Machine
Tinggalkan pesan
Deskripsi Produk
Efficiency Redefined: 6-Layer 2200L Water Bucket Blow Molding System
Key Advantages
  • 6-layer structure for superior durability and impact resistance
  • Strong barrier performance against moisture and contaminants
  • High-speed continuous production for large-scale orders
  • Layered material allocation reduces production costs
  • Flexible customization for 2200L bucket specifications
Hydraulic System Specifications
Main Oil Tank Capacity 1200L Servo motor, less energy consumption, high efficiency, low noise
Main Oil Pump Gear Pump 160CC
Main Oil Pump Motor 55kW
Servo Oil Tank Capacity 200L
Servo Oil Pump Model Plunger Pump 22
Servo Oil Pump Motor 7.5kW
Electronic Control System
Main Operation Panel Touch Screen 9"
Control System PLC
Thickness Control Points 100 Points
Temperature Control PLC Module
