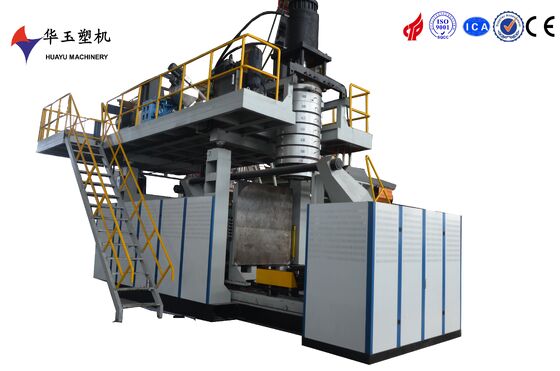

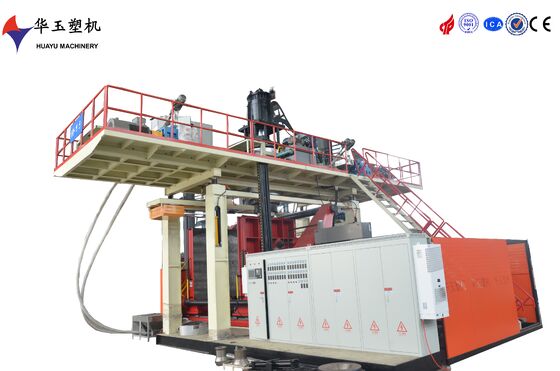

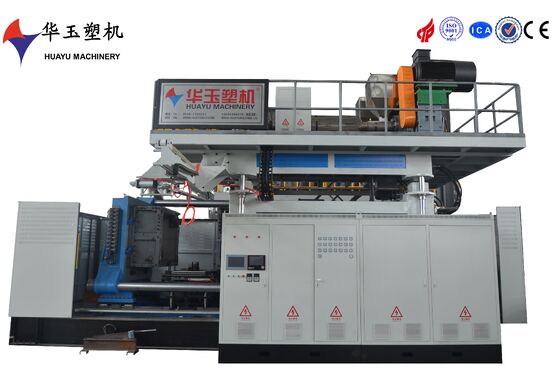

HUAYU 5000L Six-Layer Large Capacity Water Tank Blow Molding Machine with Energy-Efficient
| Tempat asal | Tiongkok |
|---|---|
| Nama merek | HUAYU |
| Sertifikasi | ISO9001 CE |
| Nomor model | HYBM5006 |
| Kuantitas min Order | 1 set |
| Harga | 540,000 USD |
| Kemasan rincian | dibongkar ke banyak bagian untuk transportasi kontainer |
| Waktu pengiriman | 4 bulan |
| Syarat-syarat pembayaran | T/T,L/C |
| Menyediakan kemampuan | 1Set 120 hari |
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Jaminan | 1 tahun | Peredam | 315/375/315 |
|---|---|---|---|
| Produksi yang tersedia | tangki air, produk plastik lainnya | produktivitas | 15 pcs/jam |
| Jenis cetakan | Stasiun tunggal | Kekuatan | 126kw |
| menjepit silinder | 350+200*2 | Katup hidrolik | Yuken |
| Rata-rata asumsi | 280kw | Motor ekstrudor | 55kw*6 |
| Jangkauan | Tangki IBC 1000L | Jarak antara Platens | 1400-3800mm |
| Tekanan udara | 0,8Mpa | Pasokan Udara | 0,8*6 (MPA*meter kubik per menit) |
| Motor | Siemens | ||
| Menyoroti | 5000L water tank blow molding machine,six-layer large capacity blow molding machine,energy-efficient water tank molding machine |
||
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Deskripsi Produk
This 5000L six-layer blow molding machine is designed for producing ultra-high-performance multi-layer water tanks. The six-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties, improved product durability, superior mechanical strength, excellent thermal stability, and superior chemical resistance. The heavy-duty cooling system ensures efficient heat dissipation, maintaining optimal operating temperatures. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Suitable for industries requiring durable and reliable multi-layer water tanks, this machine offers easy maintenance and long-term reliability.
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
5m3/min |
|
|
Cooling method |
Circulating water |
|
|
Water pressure |
0.3MPa |
|
|
Cooling water consumption |
2m3/h |
|
|
Hydraulic system |
||
|
main oil tank capacity |
1700L |
Servo motor, less energy consumption, high efficiency, low noise |
|
main oil pump |
gear pump185CC |
|
|
main oil pump motor |
75kw |
|
|
oil tank capacity |
200L |
|
|
oil pump model |
Plunger pump22 |
|
|
oil pump motor |
7.5kw |
|
