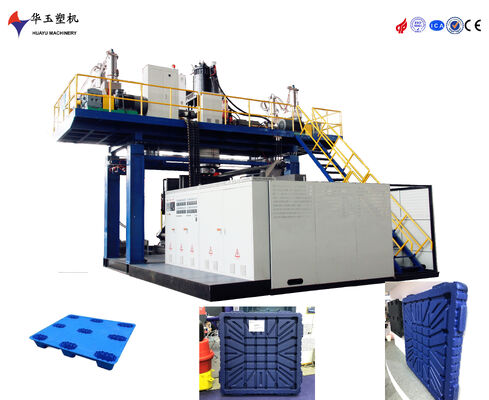

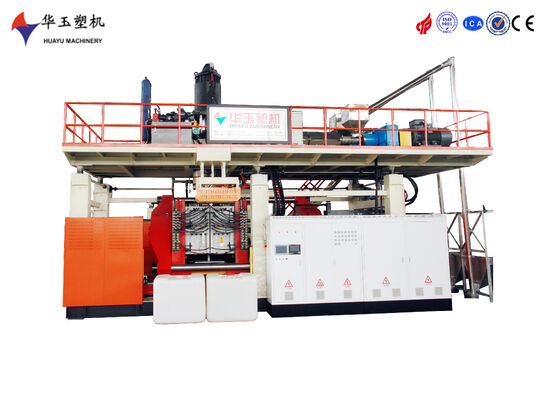

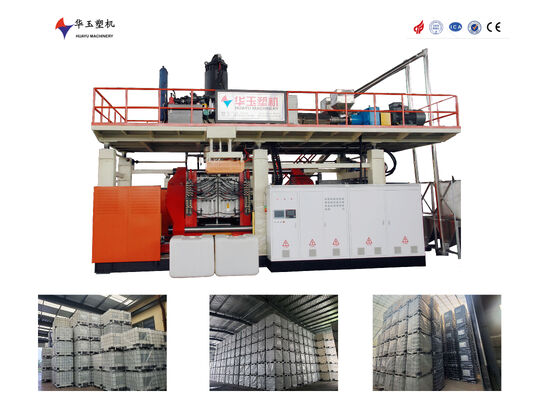

5000L Quintuple-Layer Large Capacity Water Tank Blow Molding Machine with Enhanced Mechanical Strength
| Tempat asal | Tiongkok |
|---|---|
| Nama merek | HUAYU |
| Sertifikasi | ISO9001 CE |
| Nomor model | HYBM5005 |
| Kuantitas min Order | 1 set |
| Harga | 500,000 USD |
| Kemasan rincian | dibongkar ke banyak bagian untuk transportasi kontainer |
| Waktu pengiriman | 4 bulan |
| Syarat-syarat pembayaran | T/T,L/C |
| Menyediakan kemampuan | 1Set 120 hari |
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Berat total | 38t | Motor servo | 30kw |
|---|---|---|---|
| Menggunakan | Tangki air | Kapasitas tangki maksimal | 5000 liter |
| Diameter sekrup | 120mm | Jalur silinder penjepit | 2000mm |
| Kapasitas Akumulator | 35kg | Jenis Produk | mesin cetak tiup |
| Bahan cetakan | Aluminium | Sumber Daya | Listrik |
| Diameter ekstruder | 90-150mm | Rongga cetakan | Lajang |
| Tekanan air | 0.3mpa | Catu Daya | 380V/50Hz |
| bahan hopper | Baja tahan karat | ||
| Menyoroti | 5000L water tank blow molding machine,quintuple-layer water tank machine,large capacity blow molding machine |
||
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Deskripsi Produk
This 5000L quintuple-layer blow molding machine is designed for producing ultra-high-performance multi-layer water tanks. The quintuple-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties, improved product durability, superior mechanical strength, and excellent thermal stability. The heavy-duty cooling system ensures efficient heat dissipation, maintaining optimal operating temperatures. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Suitable for industries requiring durable and reliable multi-layer water tanks, this machine offers easy maintenance and long-term reliability.
|
Clamping System |
||
|
platen size |
2400*2500*60mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
350+200*2 |
|
|
clamping cylinder stroke |
2500mm |
|
|
clamping force |
3000KN |
|
|
distance between platens |
1500-4000mm |
|
|
max. mould size |
2200*2500mm(W*H) |
|
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
5m3/min |
|
|
Cooling method |
Circulating water |
|
|
Water pressure |
0.3MPa |
|
|
Cooling water consumption |
2m3/h |
|
