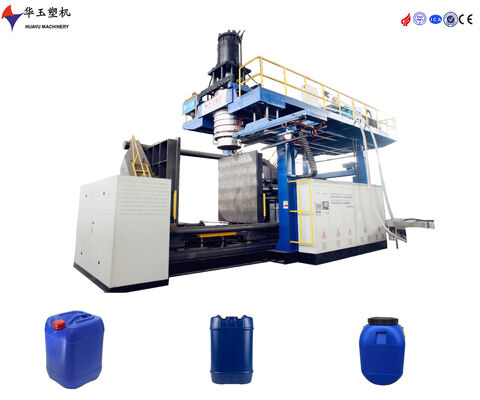

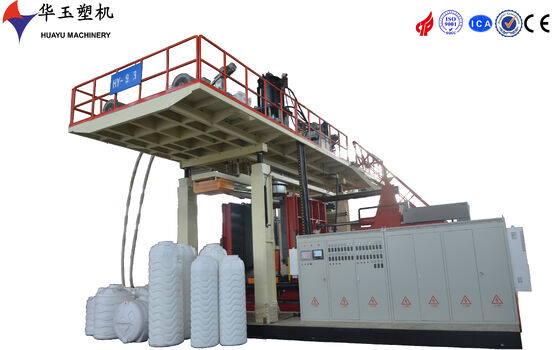

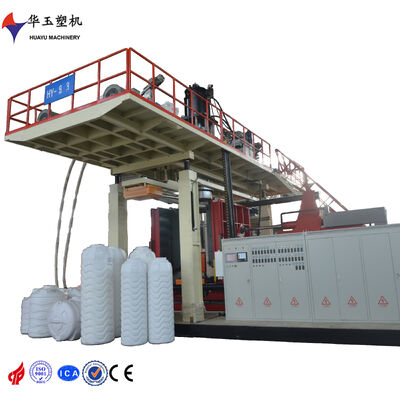

5000L Quad-Layer Large Capacity Water Tank Blow Molding Machine with Precision Temperature Control
| Tempat asal | Tiongkok |
|---|---|
| Nama merek | HUAYU |
| Sertifikasi | ISO9001 |
| Nomor model | HYBM5004 |
| Kuantitas min Order | 1 set |
| Harga | 460,000 USD |
| Kemasan rincian | dibongkar ke banyak bagian untuk transportasi kontainer |
| Waktu pengiriman | 4 bulan |
| Syarat-syarat pembayaran | L/C,T/T |
| Menyediakan kemampuan | 1Set 120 hari |
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Pickup perpindahan | Jefran | Ukuran | Disesuaikan |
|---|---|---|---|
| Bahan produk | HDPE | Jarak antara Platens | 1400-3800mm |
| Jangkauan | Tangki air | Daur ulang | Dapat didaur ulang |
| Jalur silinder penjepit | 2000mm | Merek PLC | Siemens |
| Berat mesin | 5000kg hingga 15000kg | pompa oli Mian | gear pump160cc |
| Kekuatan penjepit | 1000 kN hingga 5000 kN | sekrup dia | 150mmx1 |
| Pickup perpindahan | Jefran | Produk | tangki air, produk plastik lainnya |
| Kekuatan total | 455kw | ||
| Menyoroti | 5000L water tank blow molding machine,quad-layer large capacity blow molding machine,precision temperature control blow molding machine |
||
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Deskripsi Produk
This 5000L quad-layer blow molding machine is designed for producing ultra-high-performance multi-layer water tanks. The quad-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties, improved product durability, and superior mechanical strength. The heavy-duty cooling system ensures efficient heat dissipation, maintaining optimal operating temperatures. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Suitable for industries requiring durable and reliable multi-layer water tanks, this machine offers easy maintenance and long-term reliability.
|
die head |
||
|
Accumulator capacity |
150kg |
designed by ourselves and get the patent |
|
Die diameter |
According to products |
|
|
Die head heating power |
100kw |
|
|
Clamping System |
||
|
platen size |
2400*2500*60mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
350+200*2 |
|
|
clamping cylinder stroke |
2500mm |
|
|
clamping force |
3000KN |
|
|
distance between platens |
1500-4000mm |
|
|
max. mould size |
2200*2500mm(W*H) |
|
