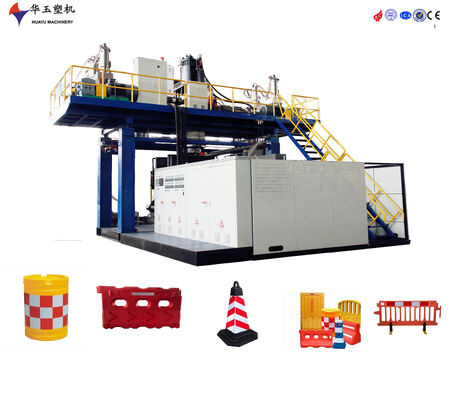

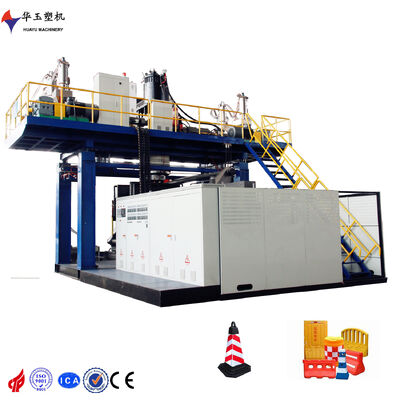

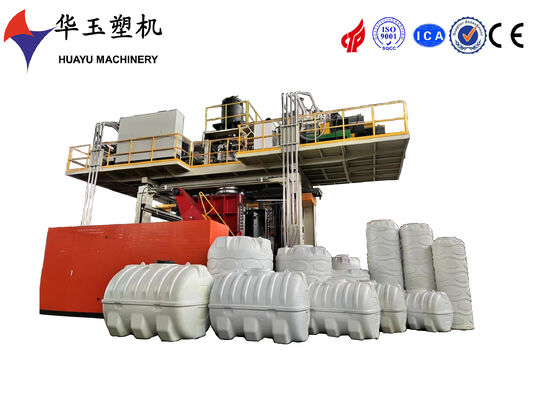

5000L Triple-Layer Large Capacity Water Tank Blow Molding Machine with Superior Corrosion Resistance
| Tempat asal | Tiongkok |
|---|---|
| Nama merek | HUAYU |
| Sertifikasi | ISO9001 CE |
| Nomor model | HYBM5003 |
| Kuantitas min Order | 1 set |
| Harga | 420,000 USD |
| Kemasan rincian | dibongkar ke banyak bagian untuk transportasi kontainer |
| Waktu pengiriman | 4 bulan |
| Syarat-syarat pembayaran | T/T,L/C |
| Menyediakan kemampuan | 1Set 120 hari |
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Diameter sekrup | 100mm*6 | Tipe Mesin | mesin cetak tiup |
|---|---|---|---|
| Paris | MOOG 200 poin | Tahun | 2024 |
| Tekanan udara maksimum | 0,8Mpa | Otomatis | Ya |
| Kata-kata kunci | Motor servo, kendali jarak jauh | Jenis Cetakan Tiup | Cetakan Tiup Ekstrusi |
| Tipe hembusan | Cetakan Tiup Ekstrusi | Ukuran pelat | 2200*2400*70mm (w*h*t) |
| Jangkauan | 500-2000L | Layar sentuh | Siemens |
| Jenis makan | kekosongan dimuat | Industri yang Berlaku | Lainnya |
| Motor Memberi Makan | 1.5kw*4 | ||
| Menyoroti | 5000L water tank blow molding machine,triple-layer water tank machine,large capacity corrosion-resistant water tank machine |
||
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Deskripsi Produk
This 5000L triple-layer blow molding machine is designed for producing high-performance multi-layer water tanks. The triple-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties and improved product durability. The heavy-duty cooling system ensures efficient heat dissipation, maintaining optimal operating temperatures. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Suitable for industries requiring durable and reliable multi-layer water tanks, this machine offers easy maintenance and long-term reliability.
|
Extrusion System |
||
|
Screw diameter |
150/150mm |
Nitrided 38CrMoAIA |
|
Screw L/D ratio |
30:1 |
special designed screw can ensure the material plasticizing uniform and efficient |
|
Extruder motor |
160/160kw |
|
|
Reducer |
420/420 |
Best quality brand in china ,long life and low noise |
|
Screw heating power |
6kw*14 |
|
|
Plasticizing capacity |
1000kg/h |
|
|
die head |
||
|
Accumulator capacity |
150kg |
designed by ourselves and get the patent |
|
Die diameter |
According to products |
|
|
Die head heating power |
100kw |
|
