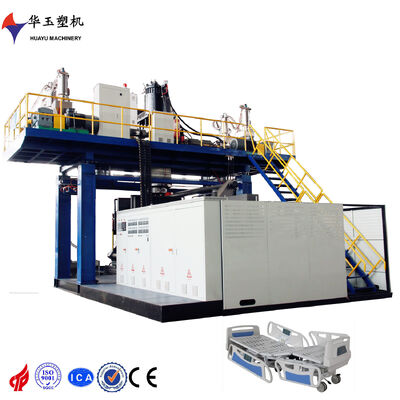

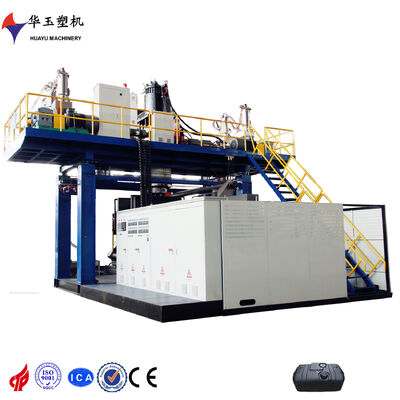

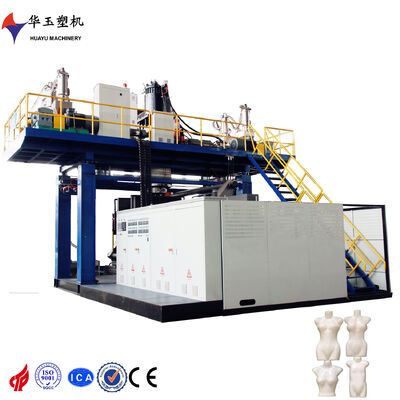

HUAYU 3000L Ten-Layer Large Capacity Water Tank Blow Molding Machine with Superior Impact Resistance
| Tempat asal | Tiongkok |
|---|---|
| Nama merek | HUAYU |
| Sertifikasi | ISO9001 CE |
| Nomor model | HYBM30010 |
| Kuantitas min Order | 1 set |
| Harga | 440 000 USD |
| Kemasan rincian | dibongkar ke banyak bagian untuk transportasi kontainer |
| Waktu pengiriman | 4 bulan |
| Syarat-syarat pembayaran | T/T,L/C |
| Menyediakan kemampuan | 1Set 120 hari |
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Ketebalan ember | tidak terlalu tebal | Lokasi Ruang Pamer | Tidak ada |
|---|---|---|---|
| Konsumsi Udara | 1,0m3/menit | rata-rata | 40KW |
| Pukulan Peregangan | Menurut Produk | Motor Ekstruder | 90kw |
| PLC | SIMENS (Jerman) | Daur ulang | Dapat didaur ulang |
| Rata-rata asumsi | 280kw | Titik Jual | Efisiensi tinggi |
| Jenis Cetakan Tiup | Cetakan Tiup Injeksi | Bahan | HDPE |
| Demesion mesin | 8.5*6*7.2 | Konsumsi Rata-Rata | 180kw |
| Sistem Pengendalian | Kontrol PLC | ||
| Menyoroti | HUAYU 3000L water tank blow molding machine,large capacity blow molding machine with impact resistance,ten-layer water tank blow moulding machine |
||
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Deskripsi Produk
This 3000L ten-layer blow molding machine is designed for producing ultra-high-performance multi-layer water tanks. The ten-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties, improved product durability, superior mechanical strength, excellent thermal stability, superior chemical resistance, advanced UV protection, superior oxygen barrier, advanced moisture barrier, and superior impact resistance. The heavy-duty cooling system ensures efficient heat dissipation, maintaining optimal operating temperatures. The machine's advanced control system offers precise control over the molding
|
die head |
||
|
Accumulator capacity |
90kg |
designed by ourselves and get the patent |
|
Die diameter |
According to products |
|
|
Die head heating power |
110kw |
|
|
Clamping System |
||
|
platen size |
2100*2200*60mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
160*2 320*1 |
|
|
clamping cylinder stroke |
2100mm |
|
|
clamping force |
2200KN |
|
|
istance between platens |
1100-3200mm |
|
|
max. mould size |
1800*2200mm(W*H) |
|
