1000L 7-Layer Large Customized Water Tank Blow Molding Machine with Customized
| Tempat asal | CINA |
|---|---|
| Nama merek | HUAYU |
| Sertifikasi | ISO9001 CE |
| Nomor model | HYBM1000-7 |
| Kuantitas min Order | 1 set |
| Harga | 280000 USD |
| Kemasan rincian | dibongkar ke banyak bagian untuk transportasi kontainer |
| Waktu pengiriman | 4 bulan |
| Syarat-syarat pembayaran | L/c, t/t |
| Menyediakan kemampuan | 1Set 120 hari |
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Die Head Weight | 26T | Keluaran | 700kg/jam |
|---|---|---|---|
| Ketebalan ember | tidak terlalu tebal | Produktivitas | 16-25 pcs/jam |
| Jenis makan | Pemberian makan vakum | Kontaktor | Schneider |
| Total Kekuatan | 560KW | Layar sentuh | Siemens |
| Tipe pengumpan | Pengumpan vakum | Kapasitas produksi | 10-15 buah per jam |
| Menggunakan | Tangki air | Kapasitas barang | 500 --- 2000L, 10 lapisan |
| Pukulan Peregangan | Menurut Produk | Kekuatan total | 775.5kw |
| Peredam | 315*4 | ||
| Menyoroti | 1000L water tank blow molding machine,7-layer water tank molding machine,customized blow molding machine for water tanks |
||
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Deskripsi Produk

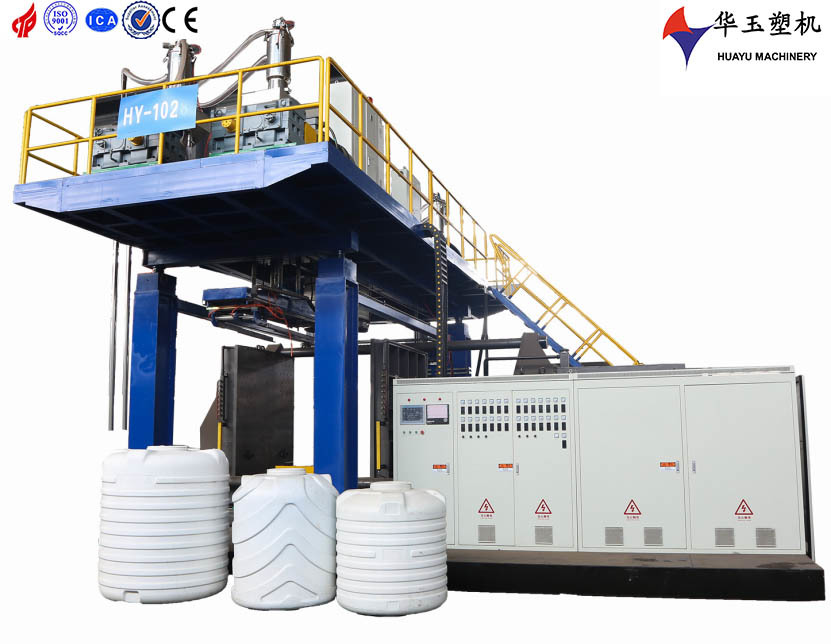

This customized blow molding machine with a 1000L capacity and 7-layer co-extrusion is designed to meet specific production requirements. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's customizable design allows for various product shapes and sizes, making it suitable for multiple industries. Its user-friendly interface and automated controls make operation straightforward, even for less experienced operators. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
die head |
||
|
Accumulator capacity |
45kg |
designed by ourselves and get the patent |
|
Die diameter |
According to products |
|
|
head heating power |
40kw |
|
|
Clamping System |
||
|
platen size |
1600*1800*70(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
280 |
|
|
clamping cylinder stroke |
1800mm |
|
|
clamping force |
1000KN |
|
|
distance between platens |
900-2700mm |
|
|
max. mould size |
1400*1700mm(W*H) |
|
