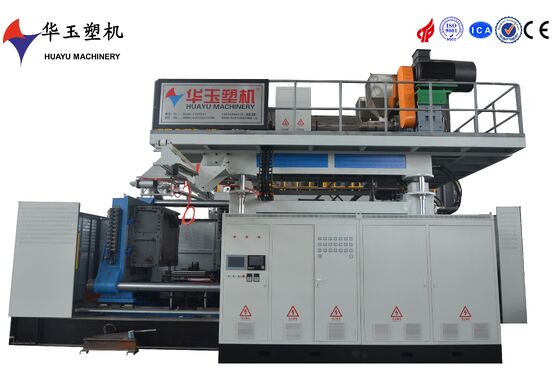

3000L 1-Layer Large Basic Water Tank Blow Molding Machine for Basic Production
| Tempat asal | CINA |
|---|---|
| Nama merek | HUAYU |
| Sertifikasi | ISO9001 CE |
| Nomor model | HYBM3000-1 |
| Kuantitas min Order | 1 set |
| Harga | 260000 USD |
| Kemasan rincian | dibongkar ke banyak bagian untuk transportasi kontainer |
| Waktu pengiriman | 4 bulan |
| Syarat-syarat pembayaran | T/t, l/c |
| Menyediakan kemampuan | 1Set 120 hari |
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Bahan sekrup | 38CrMoAlA, Nitridasi | Level Otomasi | Sepenuhnya otomatis |
|---|---|---|---|
| Kapasitas Plastisisasi | 400kg/jam | Ketebalan ember | tidak terlalu tebal |
| Materi yang berlaku | HDPE | Tekanan air | 0.3mpa |
| Pasokan Udara | 0,8*6 (MPA*meter kubik per menit) | Kecepatan produksi | 100-200 PC/H. |
| menjepit silinder | 320+160*2 | Setelah penjualan | Layanan luar negeri |
| Demesion mesin | 8.5*6*7.2 | Rentang Produk | Botol plastik jerrycan |
| Volume bagian berongga | 500-2000L | Kapasitas | 1000-5000 liter |
| Ukuran mesin | 5.0x2.3x3.6m | ||
| Menyoroti | 3000L water tank blow molding machine,1-layer water tank production machine,large basic water tank molding equipment |
||
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Deskripsi Produk
This basic blow molding machine with a 3000L capacity and 1-layer co-extrusion is designed for fundamental production needs. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's straightforward design and reliable performance make it suitable for small to medium-scale production environments. Its advanced control system offers precise control over the molding process, ensuring consistent product quality. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
3m3/min |
|
|
Cooling method |
Circulating water |
|
|
Water pressure |
0.3MPa |
|
|
Cooling water consumption |
75m3/h |
|
|
Hydraulic system |
||
|
main oil tank capacity |
1500L |
Servo motor, less energy consumption, high efficiency, low noise |
|
main oil pump |
gear pump185CC |
|
|
main oil pump motor |
70kw |
|
|
Servo oil tank capacity |
200L |
|
|
Servo oil pump model |
Plunger pump22 |
|
|
Servo oil pump motor |
7.5kw |
|
