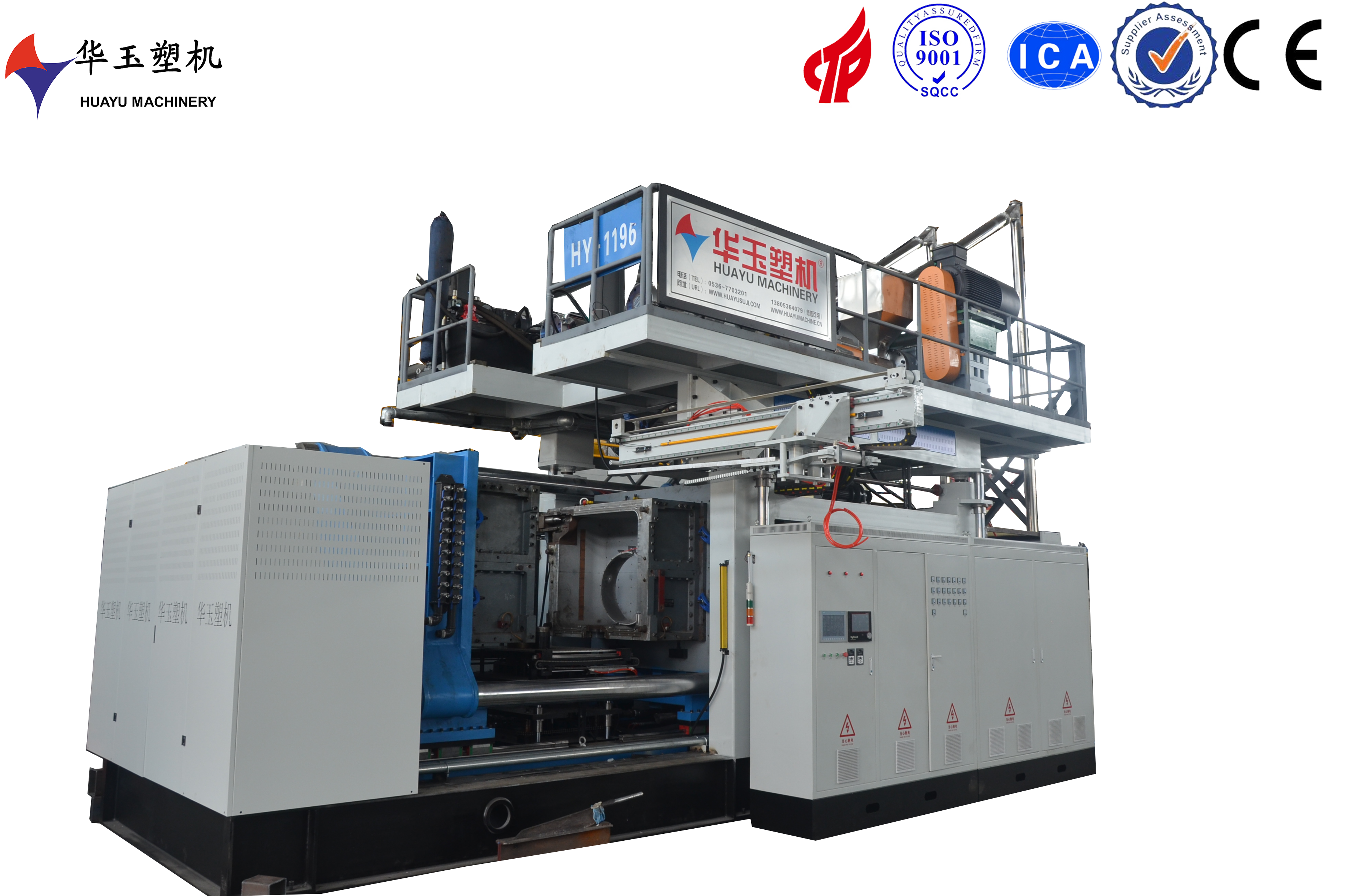

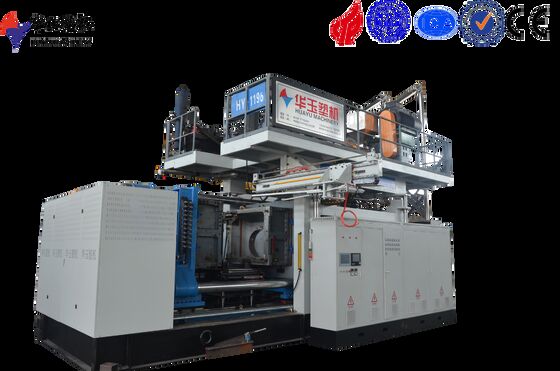

5000L 1-Layer Large Customized Water Tank Blow Molding Machine with Customized
| Tempat asal | CINA |
|---|---|
| Nama merek | HUAYU |
| Sertifikasi | ISO9001 CE |
| Nomor model | HYBM5000-1 |
| Kuantitas min Order | 1 set |
| Harga | 340000 USD |
| Kemasan rincian | dibongkar ke banyak bagian untuk transportasi kontainer |
| Waktu pengiriman | 4 bulan |
| Syarat-syarat pembayaran | L/c, t/t |
| Menyediakan kemampuan | 1Set 120 hari |
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Peredam | 250*2, 280*4 | Keuntungan | Pengalaman 20 Tahun |
|---|---|---|---|
| Daya rata -rata | 390kw | Metode pembersihan | Pembersihan Mudah |
| Dimensi mesin | 8*9*6.5 | Ukuran mesin | 7.2x3.3x5.5m |
| Bahan sekrup | 38CrMoAlA, Nitridasi | Jaminan | 1 tahun |
| Kotak Gear | Guomao | Tenaga motor ekstrusi | 7,5-15kw |
| Kapasitas Akumulator | 60kg | Keuntungan | Lebih efisien dan stabil |
| Konsumsi Rata-Rata | 350kw | Tekanan udara maksimum | 0.8Mpa |
| Motor Memberi Makan | 2.2kw*8 | ||
| Menyoroti | 5000L water tank blow molding machine,customized blow molding machine for water tanks,large 1-layer water tank molding machine |
||
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Deskripsi Produk
This customized blow molding machine with a 5000L capacity and 1-layer co-extrusion is designed to meet specific production requirements. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's customizable design allows for various product shapes and sizes, making it suitable for multiple industries. Its advanced control system offers precise control over the molding process, ensuring consistent product quality. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
Clamping System |
||
|
platen size |
2100*2200*60mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
160*2 320*1 |
|
|
clamping cylinder stroke |
2100mm |
|
|
clamping force |
2200KN |
|
|
distance between platens |
1100-3200mm |
|
|
max. mould size |
1800*2200mm(W*H) |
|
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
3m3/min |
|
|
Cooling method |
Circulating water |
|
|
ater pressure |
0.3MPa |
|
|
ooling water consumption |
75m3/h |
|
