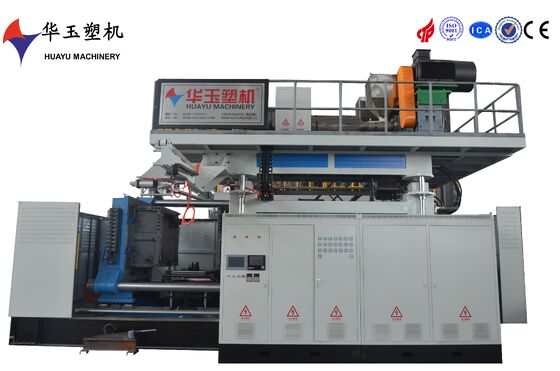

3000L 2-Layer Large Eco-Friendly Water Tank Blow Molding Machine with Eco-Friendly
| Tempat asal | CINA |
|---|---|
| Nama merek | HUAYU |
| Sertifikasi | ISO9001 E |
| Nomor model | HYBM3000-2 |
| Kuantitas min Order | 1 set |
| Harga | 290000 USD |
| Kemasan rincian | dibongkar ke banyak bagian untuk transportasi kontainer |
| Waktu pengiriman | 4 bulan |
| Syarat-syarat pembayaran | L/c, t/t |
| Menyediakan kemampuan | 1Set 120 hari |
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Jenis makan | Pemberian makan vakum | Kondisi | Baru |
|---|---|---|---|
| Rentang Produk | Botol air, tangki air | Bahan | Plastik |
| Motor ekstroder | 45*7 | Tekanan air pendingin | 0.3-0.6mpa |
| bahan hopper | Baja tahan karat | Daya rata -rata | 320kw |
| kontrol sysytem | Moog+plc | Kontrol Parison | MOOG 200 poin |
| Poin Jual Kunci | Umur layanan yang panjang | Jenis | peralatan extrusi blow molding |
| Kata kunci | Mesin Cetak Tiup Ekstrusib | Jalur silinder penjepit | 2000mm |
| Kekuatan pemanas sekrup | 5.5kw*10 | ||
| Menyoroti | 3000L eco-friendly water tank machine,2-layer water tank blow molding machine,large water tank molding machine with warranty |
||
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Deskripsi Produk
This eco-friendly blow molding machine with a 3000L capacity and 2-layer co-extrusion is designed with environmental sustainability in mind. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its eco-friendly design reduces environmental impact and enhances the machine's longevity. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
die head |
||
|
Accumulator capacity |
90kg |
designed by ourselves and get the patent |
|
Die diameter |
According to products |
|
|
Die head heating power |
110kw |
|
|
Clamping System |
||
|
platen size |
2100*2200*60mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
160*2 320*1 |
|
|
clamping cylinder stroke |
2100mm |
|
|
clamping force |
2200KN |
|
|
distance between platens |
1100-3200mm |
|
|
max. mould size |
1800*2200mm(W*H) |
|
