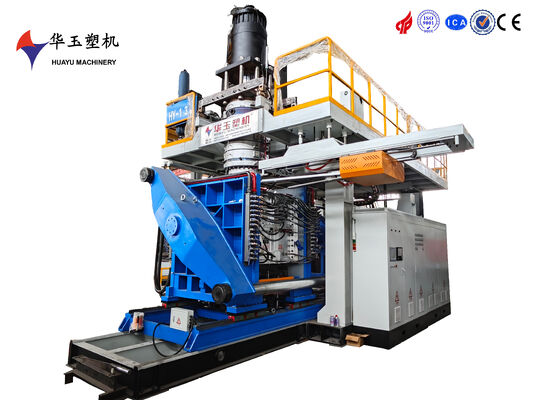

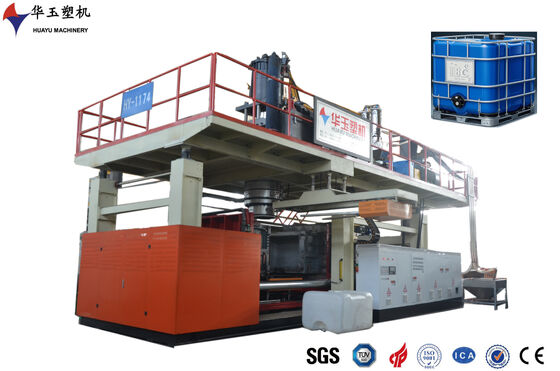

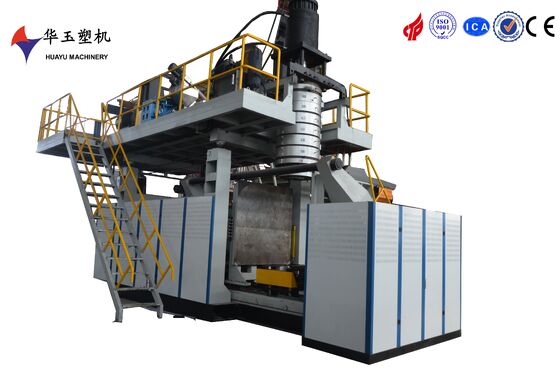

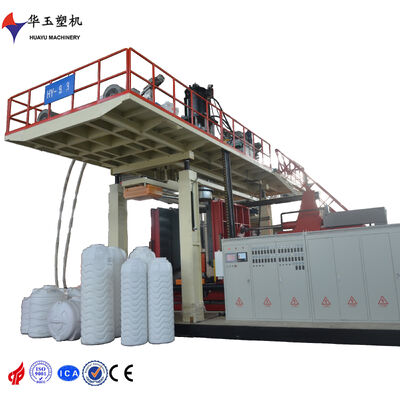

3000L 5-Layer Large Lightweight Water Tank Blow Molding Machine with Lightweight Cooling System

Tempat asal CINA
Nama merek HUAYU
Sertifikasi ISO9001 CE
Nomor model HYBM3000-5
Kuantitas min Order 1 set
Harga 380000 USD
Kemasan rincian dibongkar ke banyak bagian untuk transportasi kontainer
Waktu pengiriman 4 bulan
Syarat-syarat pembayaran T/t, l/c
Menyediakan kemampuan 1Set 120 hari

Hubungi saya untuk sampel gratis dan kupon.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.

x
Detail produk
Jenis mesin Mesin Pembuat Botol Plastik Berkecepatan Tinggi Layar sentuh Siemens
katup servo Moog Kapasitas Plastisisasi 800kg/jam
Kotak Gear Guomao Metode pembersihan Pembersihan Mudah
Bahan hopper Baja tahan karat Sakelar udara Schneider
Kisaran kapasitas 500--3000L, 5 lapisan Sistem pendingin cetakan Pendinginan udara
Tekanan udara maksimum 0.8Mpa Kapasitas 1000 liter
Motor Memberi Makan 2.2/2.2/2.2kw Menjamin 1 tahun
Jenis cetakan Stasiun tunggal
Menyoroti

3000L water tank blow molding machine

,

5-layer lightweight water tank machine

,

blow molding machine with cooling system

Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Tinggalkan pesan
Deskripsi Produk

This lightweight blow molding machine with a 3000L capacity and 5-layer co-extrusion is designed for efficient production of lightweight plastic products. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its lightweight design and reliable performance make it suitable for industries requiring lightweight plastic products. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs. The integrated lightweight cooling system further reduces energy consumption, making it an ideal choice for manufacturers looking to optimize their production processes while minimizing environmental impact.

 Clamping  System

platen size

2200*2400*70mm(W*H*T)

smooth running, no noise; the clamping force is big

clamping cylinder

200+300*2

clamping cylinder stroke

2100mm



clamping force

2200KN



distance between platens

1100-3200mm



ax. mould size

1700*2200mm(W*H)



 blowing and cooling system

stretching stroke

according to products



blow pin up/down stroke

600mm



air seat stroke

400mm



imum air pressure

0.8Mpa



air consumption

3m3/min



Cooling method

Circulating water



Water pressure

0.3MPa



Cooling water consumption

75m3/h
