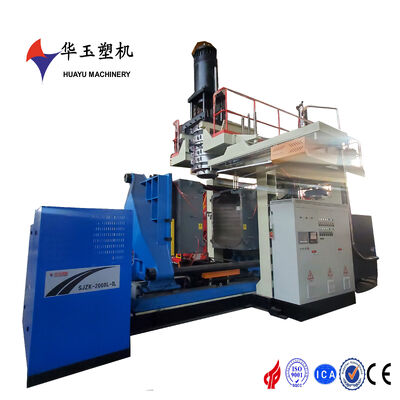

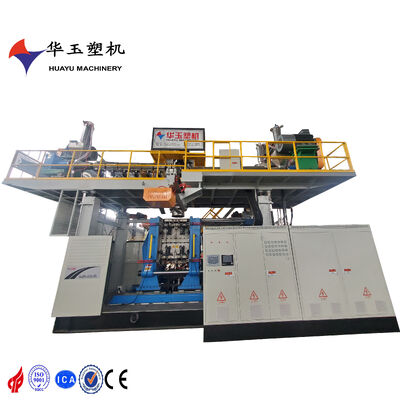

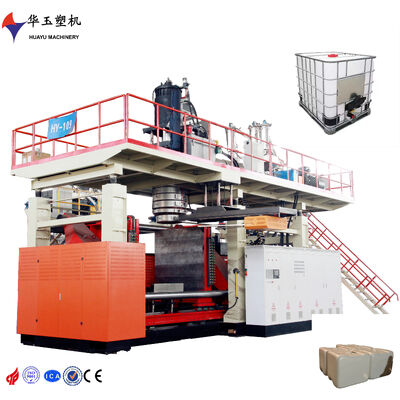

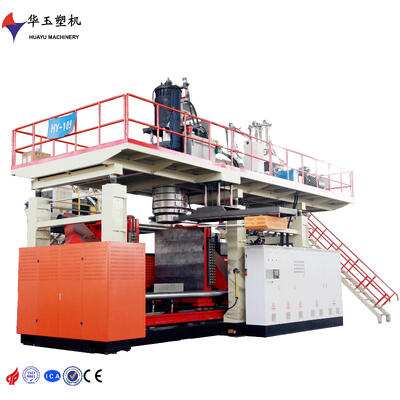

3000L 8-Layer Large High-Speed Water Tank Blow Molding Machine with Rapid Cooling System
| Tempat asal | CINA |
|---|---|
| Nama merek | HUAYU |
| Sertifikasi | IISO9001 CE |
| Nomor model | HYBM3000-8 |
| Kuantitas min Order | 1 set |
| Harga | 440000 USD |
| Kemasan rincian | dibongkar ke banyak bagian untuk transportasi kontainer |
| Waktu pengiriman | 4 Monrhs |
| Syarat-syarat pembayaran | T/t, l/c |
| Menyediakan kemampuan | 1Set 120 hari |
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Aplikasi | Produksi Tangki Air | Bahan | HDPE |
|---|---|---|---|
| Jarak pelat | 2300-5500MM | Jalur silinder penjepit | 2000mm |
| Volume Maks | 10-25L | Ukuran mesin | 2.8x1.65x2.3m |
| Kekuatan pemanas sekrup | 4.4KW*15 | Dimensi | 5000x3000x4000mm |
| Level Otomasi | Sepenuhnya otomatis | Menjamin | 1 tahun |
| Rongga cetakan | Tunggal/multi | Kontrol suhu | Modul PLC |
| Volume bagian berongga | 500-2000L | Ukuran | disesuaikan |
| Tipe ekstruder | Sekrup tunggal | ||
| Menyoroti | 3000L water tank blow molding machine,8-layer high-speed blow molding machine,large water tank machine with rapid cooling |
||
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Deskripsi Produk
This high-speed blow molding machine with a 3000L capacity and 8-layer co-extrusion is designed for rapid production. The water tank system ensures quick and efficient cooling, allowing for faster cycle times and increased productivity. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its robust design and high-speed capabilities make it ideal for manufacturers looking to boost production efficiency. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
3m3/min |
|
|
Cooling method |
Circulating water |
|
|
Water pressure |
0.3MPa |
|
|
Cooling water consumption |
75m3/h |
|
|
Hydraulic system |
||
|
main oil tank capacity |
1700L |
Servo motor, less energy consumption, high efficiency, low noise |
|
main oil pump |
gear pump 200CC |
|
|
main oil pump motor |
75kw |
|
|
Servo oil tank capacity |
200L |
|
|
Servo oil pump model |
Plunger pump22 |
|
|
Servo oil pump motor |
11kw |
|
