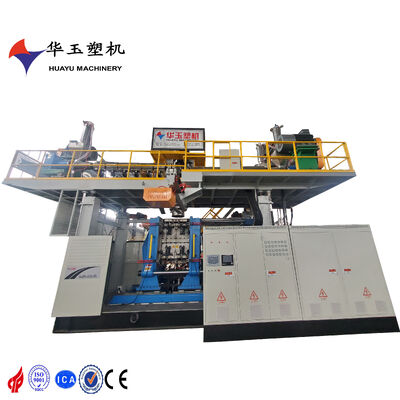

5000L 8-Layer Large Energy-Saving Water Tank Blow Molding Machine with Cooling System
| Tempat asal | CINA |
|---|---|
| Nama merek | HUAYU |
| Sertifikasi | ISO9001 CE |
| Nomor model | HYBM5000-8 |
| Kuantitas min Order | 1 set |
| Harga | 600000 USD |
| Kemasan rincian | dibongkar ke banyak bagian untuk transportasi kontainer |
| Waktu pengiriman | 4 bulan |
| Syarat-syarat pembayaran | L/c, t/t |
| Menyediakan kemampuan | 1Set 120 hari |
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Warna | Disesuaikan | Pukulan Peregangan | Menurut Produk |
|---|---|---|---|
| Stroke cetakan | 1000mm | Bidang aplikasi | kemasan cair |
| Kondisi | Baru | Jangkauan | Tangki air |
| Lapisan | 4 lapisan | Ukuran pelat | 1800*2100mm |
| Kekuatan penjepit | 800kn | Tipe hembusan | Cetakan Tiup Ekstrusi |
| menjepit silinder | 320+160*2 | Kontrol Parison | MOOG 200 poin |
| Bahan hopper | Baja tahan karat | Konsumsi daya rata -rata | 300kw |
| Kisaran kapasitas | 500--5000L, 8Layers | ||
| Menyoroti | 5000L water tank blow molding machine,8-layer energy-saving blow molding machine,large water tank machine with cooling system |
||
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Deskripsi Produk
This energy-saving blow molding machine with a 5000L capacity and 8-layer co-extrusion is designed to optimize energy usage. The water tank system ensures rapid and effective cooling, reducing energy consumption and operational costs. The machine's advanced control system provides precise control over the molding process, ensuring high-quality products. Its durable construction and reliable performance make it suitable for large-scale production environments. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
Clamping System |
||
|
platen size |
2400*2500*70mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
350+200*2 |
|
|
clamping cylinder stroke |
2200mm |
|
|
clamping force |
3000KN |
|
|
distance between platens |
1600-4000mm |
|
|
寸max. mould size |
1800*2500mm(W*H) |
|
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
3m3/min |
|
|
Cooling method |
Circulating water |
|
|
Water pressure |
0.3MPa |
|
|
Cooling water consumption |
75m3/h |
|
