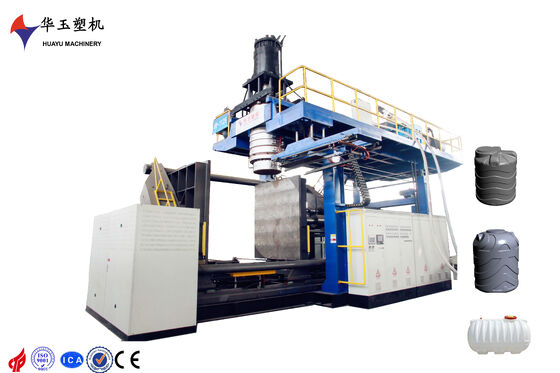

5000L 10-Layer Large-Scale Production Water Tank Blow Molding Machine with Efficient Cooling System
| Tempat asal | CINA |
|---|---|
| Nama merek | HUAYU |
| Sertifikasi | ISO9001 CE |
| Nomor model | HYBM5000-10 |
| Kuantitas min Order | 1 set |
| Harga | 620000 USD |
| Kemasan rincian | dibongkar ke banyak bagian untuk transportasi kontainer |
| Waktu pengiriman | 4 bulan |
| Syarat-syarat pembayaran | L/c, t/t |
| Menyediakan kemampuan | 1 set 120 hari |
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Sakelar udara | Schneider | Motor | 5.5 |
|---|---|---|---|
| Jarak antara Platens | 1400-3800mm | Kapasitas Plastisisasi | 600kg/jam |
| Nilai Otomasi | Otomatis | Layar sentuh | Siemens |
| Plc | Siemens | Kontaktor | Schneider |
| sekrup dia | 150mmx1 | Kapasitas akumulator | 80kg |
| Sistem pendingin | Pendingin air | Segel Oli Hidraulik | DZ |
| Voltase | 220-440v | Atribut | Gambar disesuaikan |
| Tekanan air | 0.3mpa | ||
| Menyoroti | 5000L Capacity Water Tank Blow Molding Machine,10-Layer Co-Extrusion Blow Molding Machine,Large-Scale Production Plastic Water Tank Machine |
||
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Deskripsi Produk
5000L 10-Layer Large High-Efficiency Water Tank Blow Molding Machine with Efficient Cooling System
This advanced 5000L capacity blow molding machine with 10-layer co-extrusion is engineered for large-scale production of high-quality plastic containers. Featuring an integrated water tank system for efficient cooling and heat dissipation, it maintains optimal operating temperatures while enhancing production efficiency. The state-of-the-art control system provides precise temperature and pressure regulation for consistent product quality. With robust construction and high-speed production capabilities, this machine is ideal for industries requiring large-volume, high-quality plastic products. The water tank is designed for easy maintenance and long-term reliability, offering a cost-effective solution for your production needs.
Technical Specifications
| Specification | Details |
|---|---|
| Applicable Material | HDPE |
| Manufacturer | China*HUAYU |
| Capacity Range | 1000-5000L, 3layers |
| Voltage | Pending |
| Total Power | 690kw |
| Average Power | 420kw |
| Machine Dimensions (L*W*H) | 10*8*8.8 |
| Productivity | 4-18pcs/h |
Auto Feeder Specifications
- Hopper Material: Stainless steel - Stable performance, easy maintenance
- Feeding Type: Vacuum loaded
- Feeding Motor: 2.2/2.2/2.2kw
